EMV/M2 Card Reader User Guide

Please see below for a complete overview of our EMV/M2 Reader, which includes requirements, pairing instructions, and troubleshooting.

The EMV or M2 Reader is a bluetooth paired Credit Card Reader which accepts Apple Pay, Google Pay, Chip Cards and Contactless Payments.

Important:

• US Only - This reader only works in the United States. It does not work in Canada or with Canadian Bank Accounts.
• EMV/M2 Readers will work offline as long as Offline Mode is enabled for your account under Register Settings. An internet connection is required to initially pair the reader to the atVenu Register app.

EMV Requirements

• Bluetooth: The iPad’s Bluetooth must be turned on
• Internet: A stable internet connection is required to initially pair the Reader, but once paired, the reader can function offline as long as Offline Mode is enabled for the account under Register Settings
• Location Services: Location Services must be enabled on the device and on the atVenu Register app under device Settings
  • To enable Location Services for the device access Settings > Privacy > Location Services
  • To enable Location Services for the Register app access Settings, scroll down to locate atVenu Register in your list of installed apps. Select it, then tap Location Services, then tap to enable on While Using the App

Pairing the EMV/M2 Reader from the atVenu Register app

Access the atVenu Register app on your device

• Log in to atVenu Register, select your show and if applicable, select a stand

Access Reader Settings within the atVenu Register app

• Tap the Menu button in the upper left
• Tap Settings, then Readers from the menu
• Tap the EMV/M2 Reader Connect button

Power on the Card Reader

• Press the Power Button on side of Card Reader
• The reader will beep and 1-4 (depending on battery level) green led lights will flash

Pair the Card Reader

• Hold the Reader close to the iPad
• Wait for a moment and the Reader will appear in the Discovered Readers list

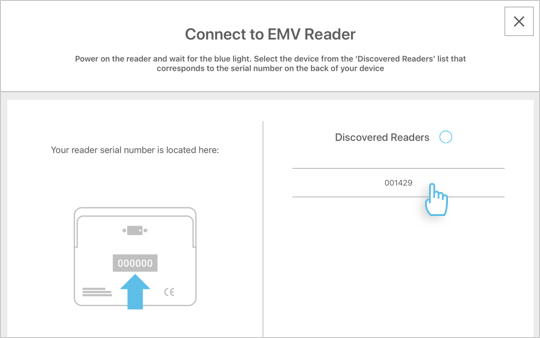

• Make sure the last 6 digits of the number in the list match the label on the back of Reader, then tap to select the matching Reader
• A message will display ‘Connecting to Reader  - - - - - -’
• Confirm pairing via the popup if presented
• Pairing may take several seconds

Pairing Complete

• Once paired, the EMV/M2 Reader will now display Connected

Note: Any required updates will be automatically installed - see EMV/M2 Reader Firmware Updates section below.

Once a reader has been paired, you can manage connections and monitor battery levels from the Operations Dashboard available from the top right corner of the main product grid view in the Register app. From this view, you can select any connected device and be redirected to the Settings > Readers pairing page. From here, click <Back in the upper right corner of the screen to be taken back to the Register default view.

From the Settings > Readers page, you also have the option to restart the reader by tapping the Reboot button.

Payments

• Once you’ve added items to the cart and have tapped Checkout, tap Credit Card to engage your EMV/M2 Reader and proceed to tap or insert the chip card

Payment Processing Methods

• The EMV/M2 Reader supports the following processing methods:
  • Contactless (Enabled CC, Apple Pay, and Google Pay)
  • Chip Card Insertion
  • Magnetic Stripe Swipe (Located on back of Reader)

Multiple Readers and EMV/M2 Behavior

You have the ability to run EMV/M2 in combination with our Pro Reader. You can have any combination of Readers connected at the same time, and process transactions using any connected Reader option.

For instance, you can be primarily processing your transactions with EMV/M2, but also have a Pro Reader plugged into the Lightning Port. You have the ability to swipe cards with the Pro Reader, even though the EMV/M2 Reader is also connected and vice versa.

Bad Chip Reads

If you experience a bad chip read with EMV/M2, you will be prompted to try again or use an alternate Credit Card for payment. After a bad chip read, you are also able to swipe the chip card from the back of the Reader, or with a connected Pro Reader.

To Disconnect Card Reader

• Tap the Menu button in the upper left
• Tap Settings, then Readers from the menu
• Tap Disconnect to unpair the Reader

Battery Level

The EMV/M2 Reader can run on its internal battery, however hard line power is recommended whenever possible for best performance.

• Current battery percentage is displayed below the EMV/M2 Reader on the Readers screen
• Low Battery warnings will be displayed when the the Reader reaches 20% and 10%

Please note: The Reader must be plugged into power when the battery reaches 20% in order to avoid connectivity issues. The Reader may automatically disconnect when the battery level becomes critical (~5%). atVenu Register will no longer remember this Reader and you must manually reconnect your Reader once the device has been sufficiently charged/plugged in.

Battery and Charging Status (LED Behavior):

• •••• (4 LEDs): Full Charge
• ••• (3 LEDs): 75% Charge
• •• (2 LEDs): 50% Charge
• • (1 LED): 25% Charge
• Flashing LED = Charging

Apple/Google Pay - Receipts & Refunds

• Apple and Google Pay transactions cannot be located using the last 4 digits of a credit card. To issue Receipts or Refunds for Apple/Google Pay orders, search Transactions by the customer’s Device Account Number or Virtual Account Number
• For Apple Pay: This number can be located in the customer’s digital wallet. Accessing the Apple Wallet app, then select the appropriate Credit Card, then tap the 3 dots (•••) in the upper right, then select Card Number to view the Apple Pay device account number
• For Google Pay: Locate the Virtual Account Number. Open the Google Wallet app. At the top of the screen, select the payment card used for the purchase (or swipe left, then select the card). At the bottom, tap Details Virtual account number

Connection Status

atVenu Register will remember the Reader it was paired with if:

• atVenu Register crashes
• The iPad goes to sleep
• The Reader is powered off

Register will attempt to pair the Reader again automatically. This can take 15-30 seconds. If the Reader does not automatically connect, proceed to manual pairing.

Register will forget the Reader it was paired with if:

• You log out of atVenu Register
• The Reader battery level becomes critical (~5%)
• You tap the Disconnect button

The Reader will be disconnected and need to be manually paired. It will not automatically reconnect.

Connectivity Status (LED Behavior):

• •••• (4 LEDs Flashing 3 Times): Reader is connected to Bluetooth
• ---- (No LEDs): Reader is in standby mode
• •--• (2 Outside LEDs Flashing): Reader is tampered and will not pair. Reader must be replaced

EMV/M2 Reader Firmware Updates

The Card Reader will require periodic updates to continue accepting payments. You will be prompted to install any available firmware updates immediately after successfully pairing a device. Please note that the Reader must be at least 50% charged in order to update firmware.

Required updates will begin installing automatically, and Reader will not be able to make payments until the required update is complete and the device is successfully connected.

• The Reader may disconnect temporarily from the Register after installation. Please wait for any additional updates to be installed and for the device to reboot. The update may take up to several minutes to complete
• The progress bubble will then become green again and indicate that your update was successfully completed
• The reader is now ready for use

Troubleshooting

If the Reader does not appear in the list of devices:

• Ensure the reader is turned on, charged, and within range of the iOS device

If the Register is unable to connect to a selected Reader from the list, you will see the Connection Error message:

• This is likely due to an unstable internet connection. Check internet connection to rule this out
• If the problem persists, proceed to quit, and relaunch atVenu Register as well as power cycling the Reader
• Then attempt to pair the Reader again

Power Cycling Steps to Resolve Most Connection or Pairing Issues:

• Quit the Register app by double tapping the Home button on the device and swiping up on the Register app
• The Reader cannot be turned off while it is plugged in to power - Remove the Reader from its Charging Cradle and/or unplug the Power Cable
• Power off Reader by pressing and holding the Power Button on side of Reader for 3 seconds
• Relaunch atVenu Register, select show (and stand), and access Settings > Readers
• Power on the Reader by pressing the Power Button on the side and attempt to pair the Reader again
• Place the Reader back in its Charging Cradle

If you are still having trouble pairing the Reader proceed to:

• Perform a power cycle of the iPad by holding down the Power button and the Home button at the same time
• Perform a hard reset of the Reader by inserting and pressing a pin or paperclip into the small hole on the bottom of the Reader

Error Code: 3240

• Message:
  • Connection Error: There was an unknown error connecting to the Reader
• Solution:
  • Access your iOS device settings
  • Select Bluetooth
  • Tap (i) next to the M2 Reader
  • Tap Forget This Device
  • Relaunch atVenu Register app and attempt pairing again

For additional error code support, please email [e-mail]
